WXT-16x16ND
KIDROCK
SFAAMPKD0002
Product Description

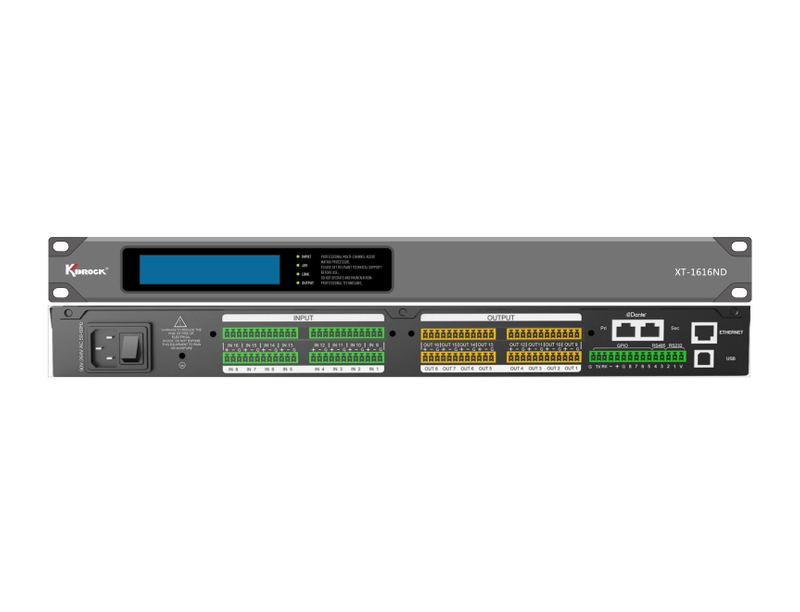

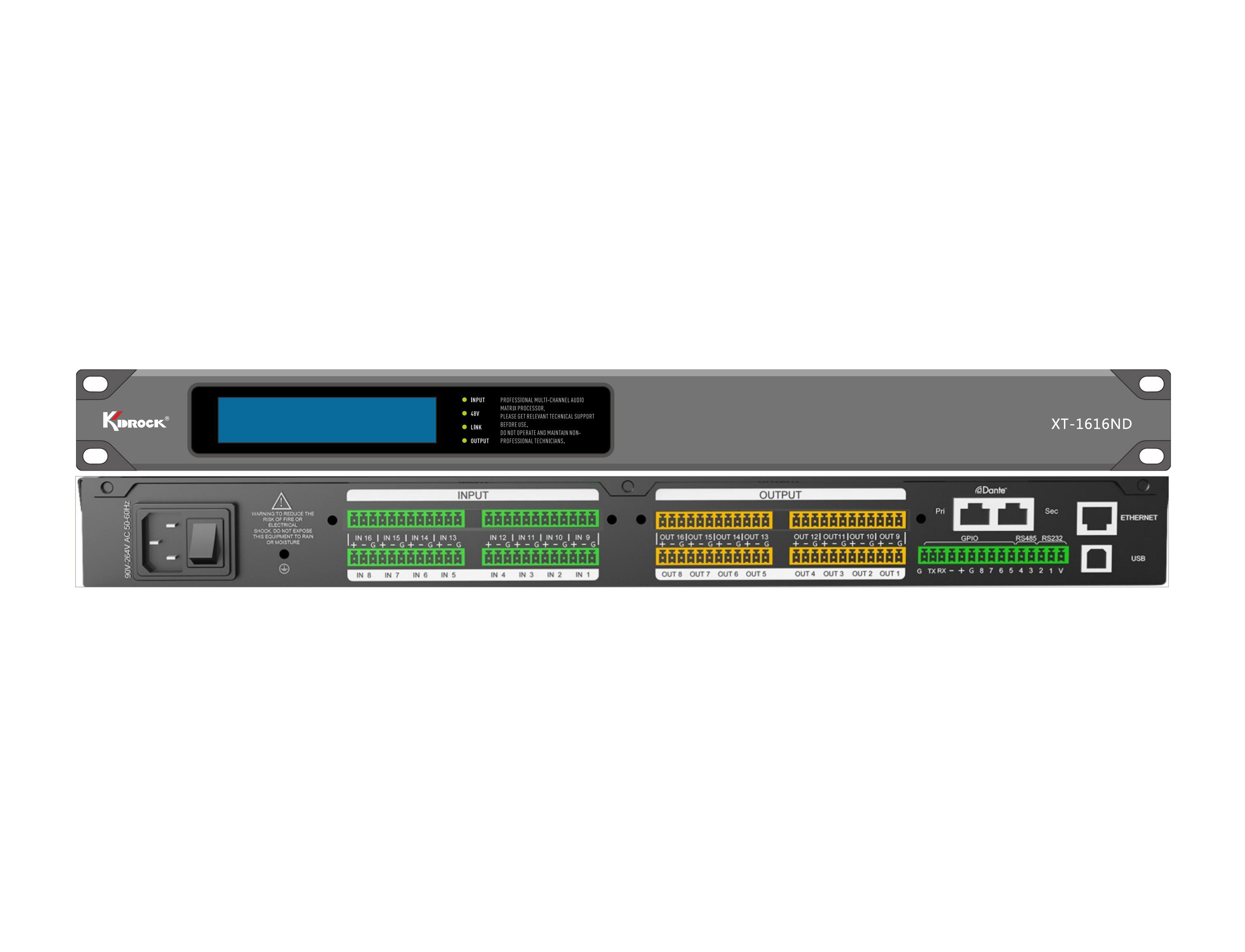

WXT-1616ND 16 in 16 out audio processor
1.16 analog inputs and 16 analog outputs
2. Support free switching between micInput and channels Input
3. Each Input comes with 48Vphantom Power, which is controlled by the upper computer software switch
4. Input level setting, noise gate Delay、 Voltage limiter, limiter
5. TCP/IP, USB drive free connection to upper computer software
6. RS-232, RS-485, GPIO interfaces provide comprehensive control functions
7. Each input has a feedback suppression function switch, with two levels of adjustment
8. AEC, automatic echo cancellation
9. ANC, automatic noise cancellation
10. Automatic mixing and matrix mixing functions
11. Input 16 segment PEQ adjustable, Output 10 segment PEQ adjustable
12. Automatic camera tracking function
13.Input impedance11.5KΩ，
14.Max Input level 12dBu/Line, -7dBu/Mic
15.phantom Power+48VDC, 6.5mA,each channel，
16.Output impedance 150Ω，Frequency Response curve 20Hz-20kHz(+-0.5dB)/Line、20Hz-20kHz(+-1.5dB)/Mic，
17.THD+N：-90dB(@12dBu,1kHz,A-wt)/Line、-86dB(@-7dBu,1kHz,A-wt)/Mic。
18.Noise Ratio：105dB(@12dBu,1kHz,A-wt)/Line、95dB(@-7dBu,1kHz,A-wt)/Mic
19.Power light , Link, +48V,Input Output audio signal。
20.Work temperature -20℃--80℃
