WXT-D880NT/WXT-D880ND
KIDROCK
SFAAMPKD0002
Product Description

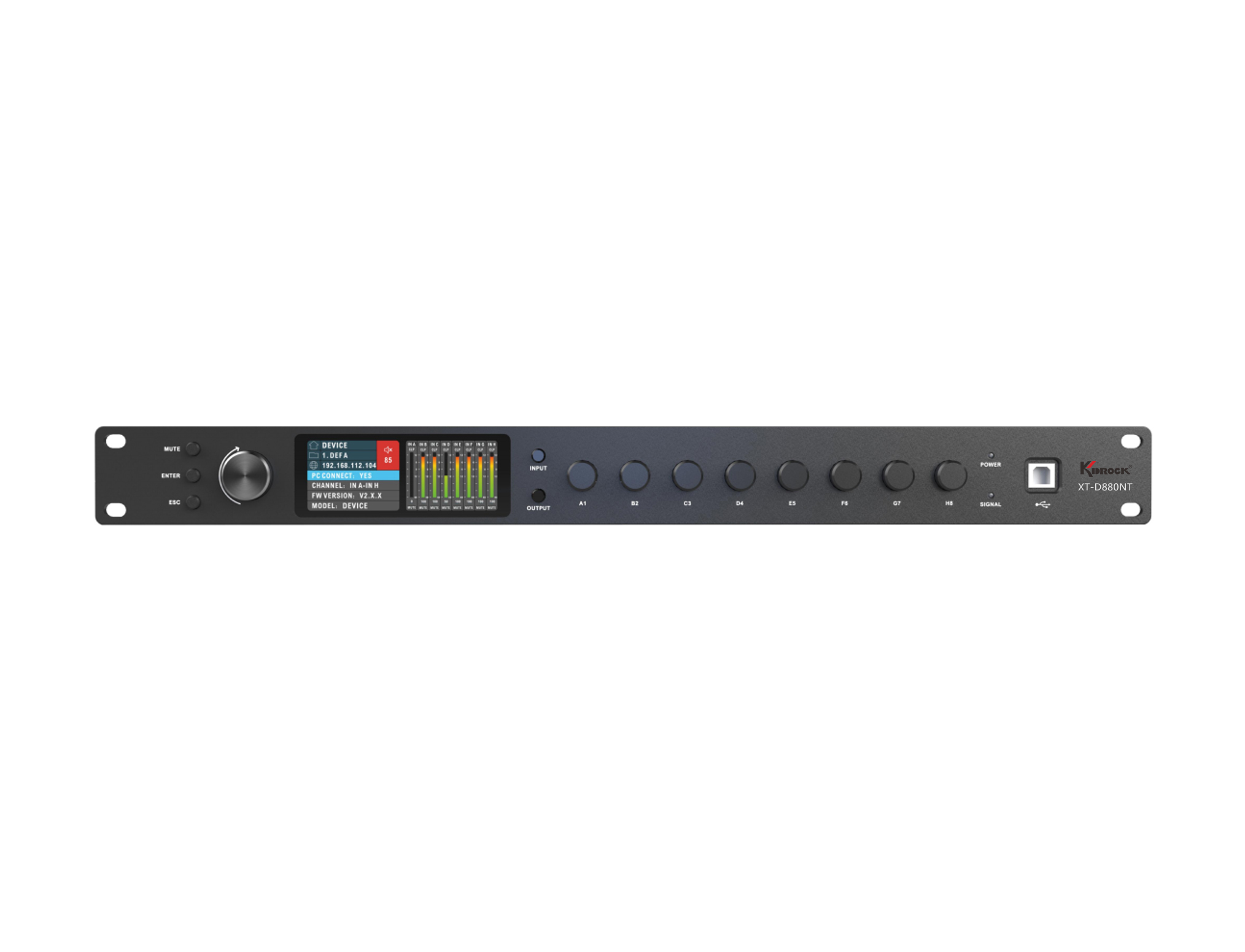

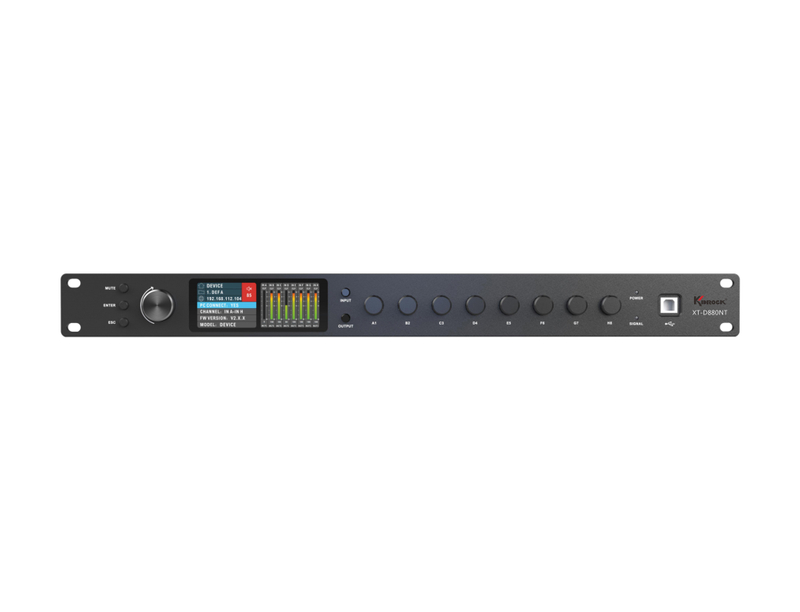

WXT-880NT 8 in 8 out audio processor
1. Equipped with 8 channels of analog input and 8 channels of analog output, built-in DSP functions such as feedback suppression, automatic mixing, matrix mixing, equalizer, frequency divider, compressor, AGC (automatic gain), AEC (echo cancellation), ANC (noise cancellation), etc. This device is controlled by computer software through USB drive free connection, RS232, RS485, TCP/IP connection to central control remote control, suitable for use in various occasions of sound amplification projects. 1. 8-channel simulated balanceInput 8-channel simulated balanceOutput, Max Input Output 17dBu (5.48Vrms) without distortion
2. Input with 48V phantom power per channel
3. Input: Each channel is equipped with a 41 level gain mic amplifier, with a step size of 1dB (provide physical equipment and on-site interface screenshots as evidence)
4. Stereo USB sound card function, supporting playback and recording (provide device interface screenshot as evidence)
5. USB interface, computer software control, and USB function (provide device interface screenshot as evidence)
6. RS232/485 interface, computer software control and central control functions
7. Network interface, computer software control and central control functions, can manage multiple devices simultaneously through network connection
8. External 8-channel GPIO interface
9. Equipped with an LCD display screen, it supports displaying device network information, real-time voltage levels, channel mute status, and matrix mixing status. (Provide screenshots of the device interface as evidence)
10. DSP functions include AFC (feedback suppression), AEC (echo cancellation), ANC (noise cancellation), and AGC (automatic gain)
AUTO MIX, MATRIX MIX, noise gate, PEQ (parametric equalizer), delayer, FIR filter, high-low pass divider, compressor, limiter
11. Input 15 segments of PEQ, Output 10 segments of PEQ
12. Input 2000ms Delay per channel, Output 2000ms Delay per channel (provide device interface screenshot as evidence)
13. Each channel of Output comes with 512 Tap FIR function (provide physical device and on-site interface screenshots as evidence)
14. Input voice excitation function for each channel (camera tracking), supporting PELCO-D, PELCO-P, and VISA protocols
Camera control
15. 60 preset memory locations (provide physical device and on-site interface screenshots as evidence)
16. Support wire control box control
17. Supports operation and control through iPad, iPhone, or Android mobile app software. The panel has a USB interface and supports multimedia storage for playback or storage recording. (Provide screenshots of the device interface as evidence)
18. Support archive locking, hide setting parameters, and ensure project technical security

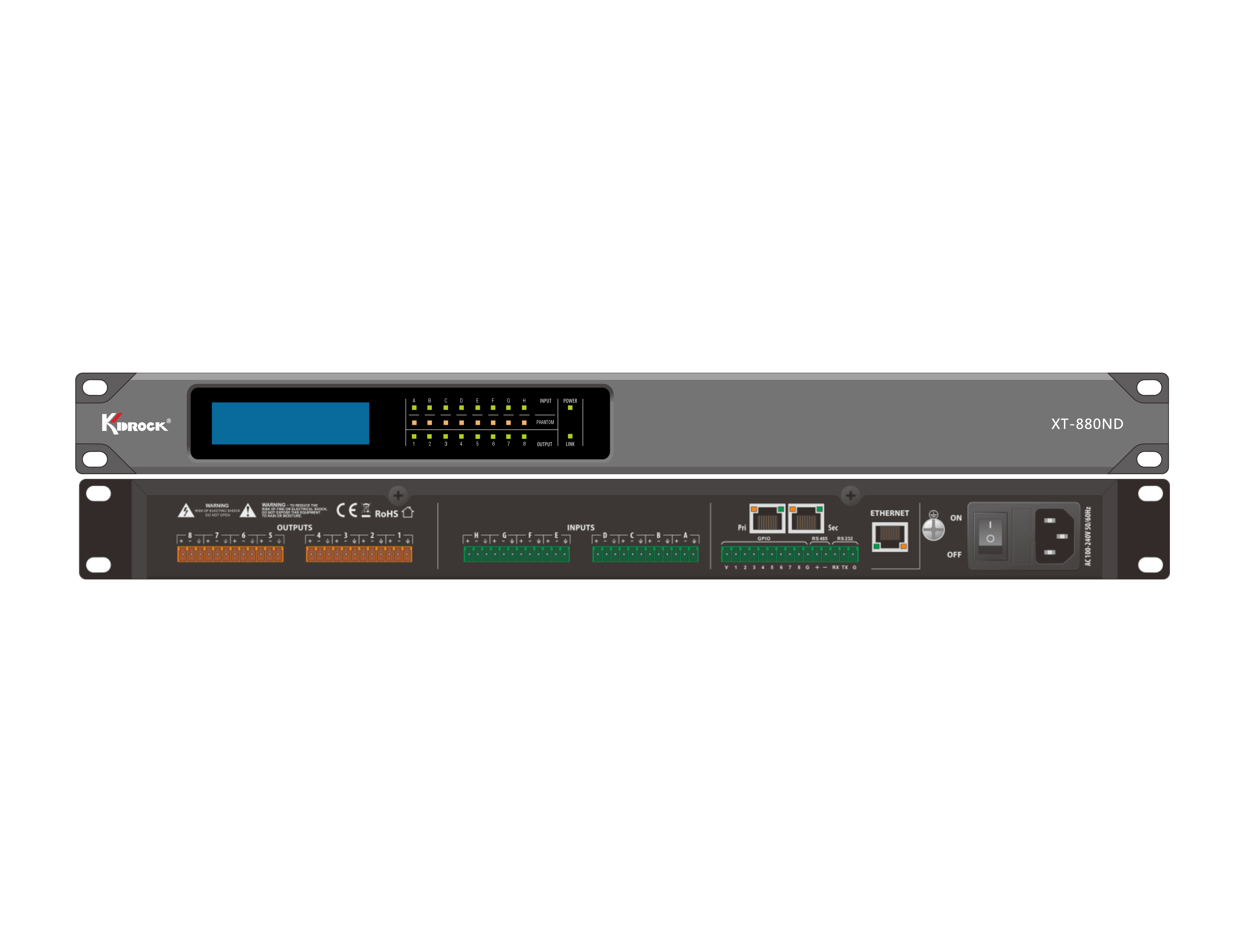

WXT-880ND 8 in 8 out audio processor
1.8 analog audio inputs and 8 analog audio outputs
2. MicInput and channels Input can be freely switched
3. Each Input comes with 48V Phantom Power
4. Equipped with 4 channels of DanteInput and Output
5. Support AES67 network digital audio function expansion
6. Automatic mixing and matrix mixing functions
7. Input 16 segment PEQ adjustable, Output 10 segment PEQ adjustable
8. TCP/IP, USB drive free automatic connection software
9. RS-232, RS-485 central control
10. Audio connection with primary/backup Dante network: RJ-45( 1000M)。
DSPcore chip
11. Signal processing: 32-bit fixed/floating point DSP 300MHz
12. Audio system latency:< 1ms
13. Digital to Analog Conversion: 24 bit
14. Sampling rate: 96KHz/48KHz
15. Analog Audio Input Output: ANALOG AUDIO INPUTS AND OUTPUTS
16. Input Channel 8 Balanced Input: Mic/line level
17. Audio interface: 3.81mm Phoenix plug, 12-pin
18.Input impedance：11.5KΩ
19. Max Input level: 12dBu/Line- 7dBu/Mic
20.phantom Power：+ 48VDC, 6.5mA, per channel configuration
21. Output channel: 8 balanced outputs, line level
22.Output impedance：150Ω
23. Audio specifications: AUDIO PERFORMANCE SPECIFICATIONS
24. Frequency Response Curve: 20Hz-20kHz (+-0.5dB)/Line
25.20Hz-20kHz(+-1.5dB)/Mic
