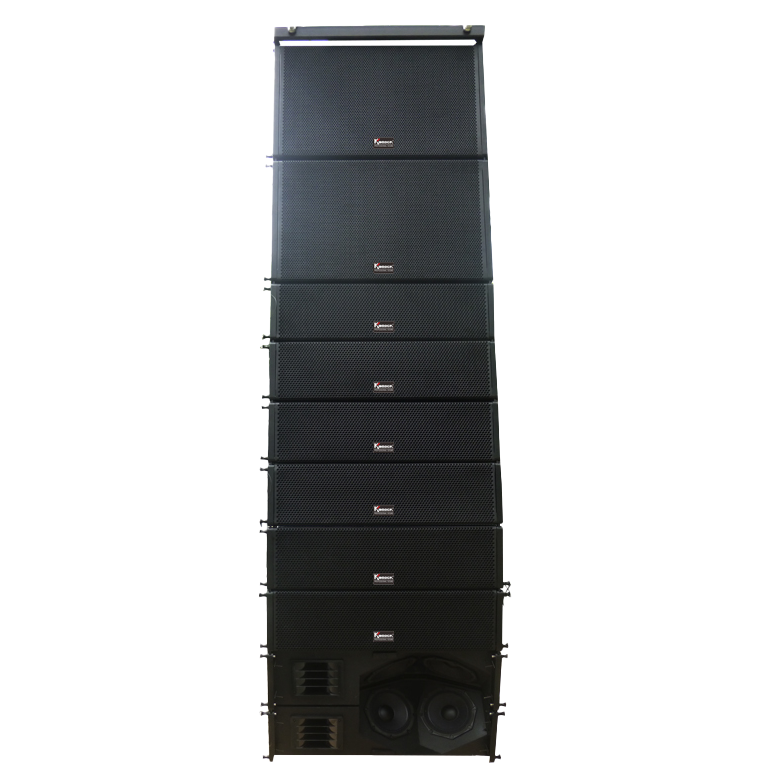

KIDROCK VX-8272

Line Array Loudspeaker

space resources are uniformly incormoratet into the latform system managemet,ad users can make aointments through itentity authetication unauthorizet personnel are rohibitet from etering the access control system Appointment viewing

Parameter

Frequency Response: 65Hz-19KHz（-10dB），70Hz-18KHz（±3.5dB）
Power Rating, Pink Noise (Continuous): 400W
Power Rating, Pink Noise (Peak): 1600W
Nominal Impedance: 8Ω
Coverage Pattern(-6dB Point): 100°H×4°
Crossover Frequency: 2.6KHz
Units: 3″ titanium compression driver /2×8″Neodymium magnet driver
System Sensitivity: 102dB/W/M
Maximum SPL (1m): 128dB
Dimensions (H x W x D): (280×190)×836×436mm
Net Weight: 26.5Kg
Gross Weight: 29.5Kg

Availability:



Inquire Add to Basket

Product Description

NAME	KIDROCK VX-8272	KIDROCK VX-8250	KIDROCK VX-8310	KIDROCK VX-8313	KIDROCK VX-8315
Frequence	65-20KHz	35-20KHz	45-18KHz	25-20KHz	55-17KHz
Coossover	1.5KHz	1.8KHz	1.5KHz	1.3KHz	1.6KHz
System sensitivity	102	96	102	94	98
Net weight	26.5	22.5	16.5	22	27
Gross weight	29.5	26.5	19.5	24	29.5
