WAF Series analog Mixer
KIDROCK
SFAAMPKD0002
Product Description

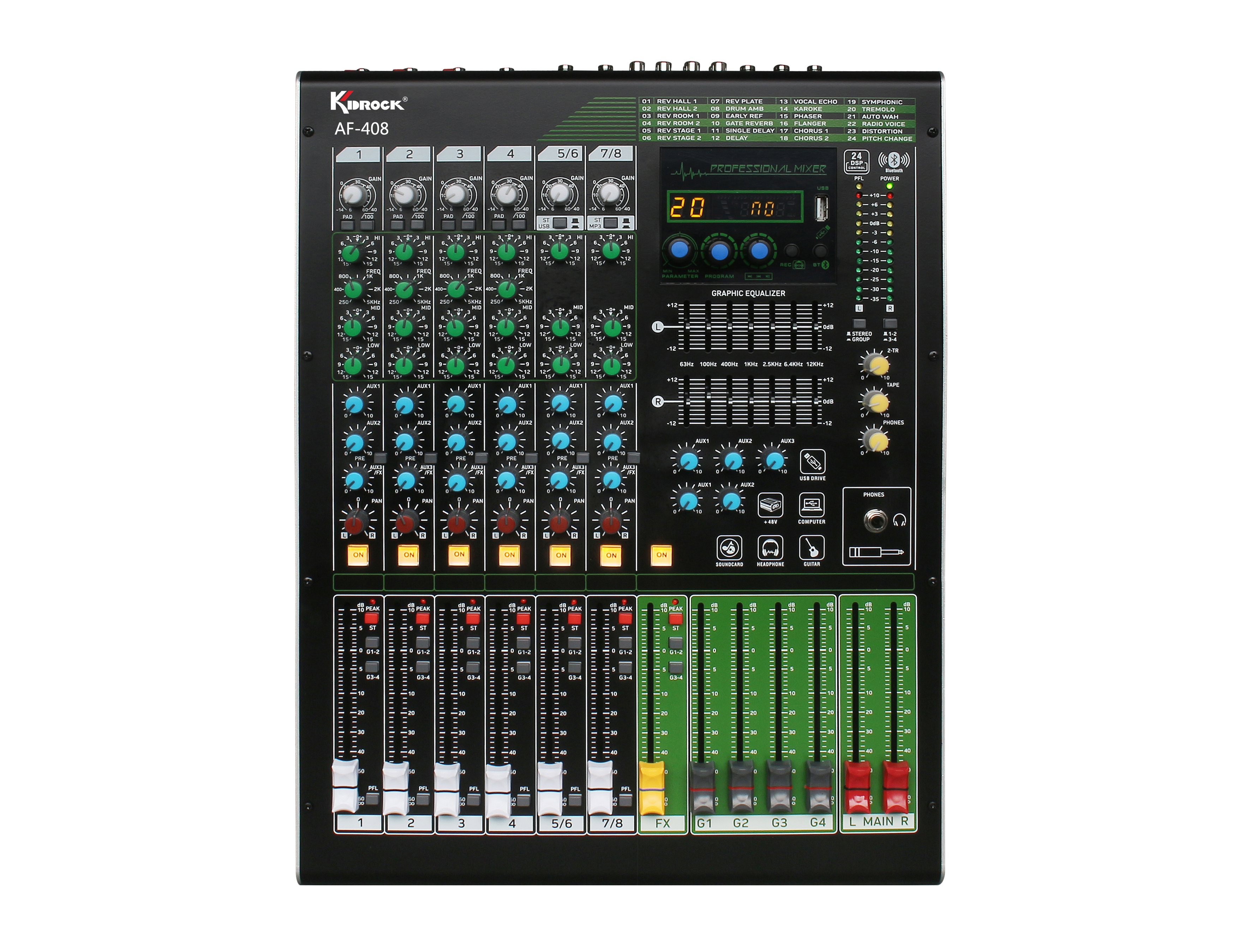

WAF-408 mixer
8-channel mixing console
1. 8-channel design, 4-channel MICMono+2-channel Stereo Input single channel 100Hz low-frequency attenuation switch (high pass filtering).
2. Equalize 3 parameters per channel, Mono with frequency sweep.
3. Four sets of output, 2 sets of faders with forward reversal, 1 set of attenuated Aux, 1 set of attenuated effect, and 3 sets of AUXbusAuxOutput (including EFF).
4. Built in 24 types of DSP digital effects.
5. Built in USB player, MP3 player, USB direct insertion recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transfers the sound played by the computer to the mixing console.
6. Built in 48V Fantasy Power supply, each channel with independent switch, main output dual 7-segment Stereo diagram equalizer, USB can switch with one channel Stereo, USB can be independently adjusted, MP3 can switch with one channel Stereo, MP3 can be independently adjusted.
7. Each input channel is equipped with an ON switch, a PEL headphone switch, and a 12 segment precise three color LED level light to display signal status. The signal is smooth and high-quality 100MM travel pusher.
8. Dimension L × W × H: 335 * 460

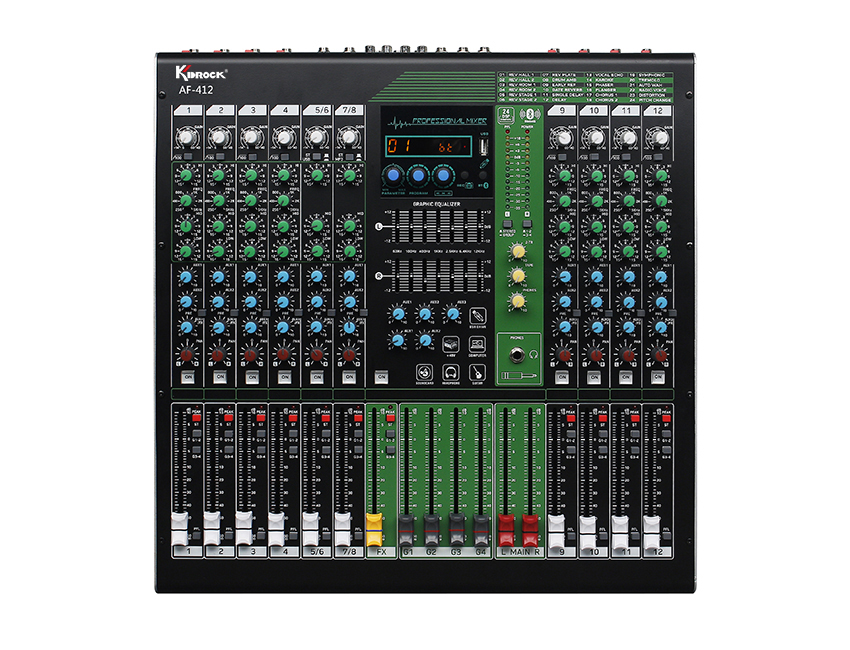

WAF-412 mixer
12-channel mixing console
1. 12 channel design, 8-channel MICMono+2-channel Stereo Input, single channel 100Hz low-frequency attenuation switch (high pass filtering).
2. Equalize 3 parameters per channel, Mono with frequency sweep.
3. Four sets of output, 2 sets of faders with forward reversal, 1 set of attenuated Aux, 1 set of attenuated effect, and 3 sets of AUXbusAuxOutput (including EFF).
4. Built in 24 DSP digital effects, built-in USB player, MP3 player, USB direct insertion recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transfers the sound played by the computer to the mixing console.
5. Built in 48V Fantasy Power supply, each channel with independent switch, main output dual 7-segment Stereo diagram equalizer, USB can switch with one channel Stereo, USB can be independently adjusted, MP3 can switch with one channel Stereo, MP3 can be independently adjusted.
6. Each input channel is equipped with an ON switch, a PEL headphone switch, a 12 segment accurate three color LED level light to display signal status, and a smooth high-quality 100MM travel pusher.
7. Dimension L × W × H: 440 * 460 * 165 (mm)
8 Net WeightWeight：7、5KG
Technical parameters:
1 Input Sensitivity： micmicrophone：-60dB
2. Stereo channel input: -40dB
3 Effect Send Echo send：-20dB
4 Effect return Echo back：-20dB
5 Output Output：Max 4V

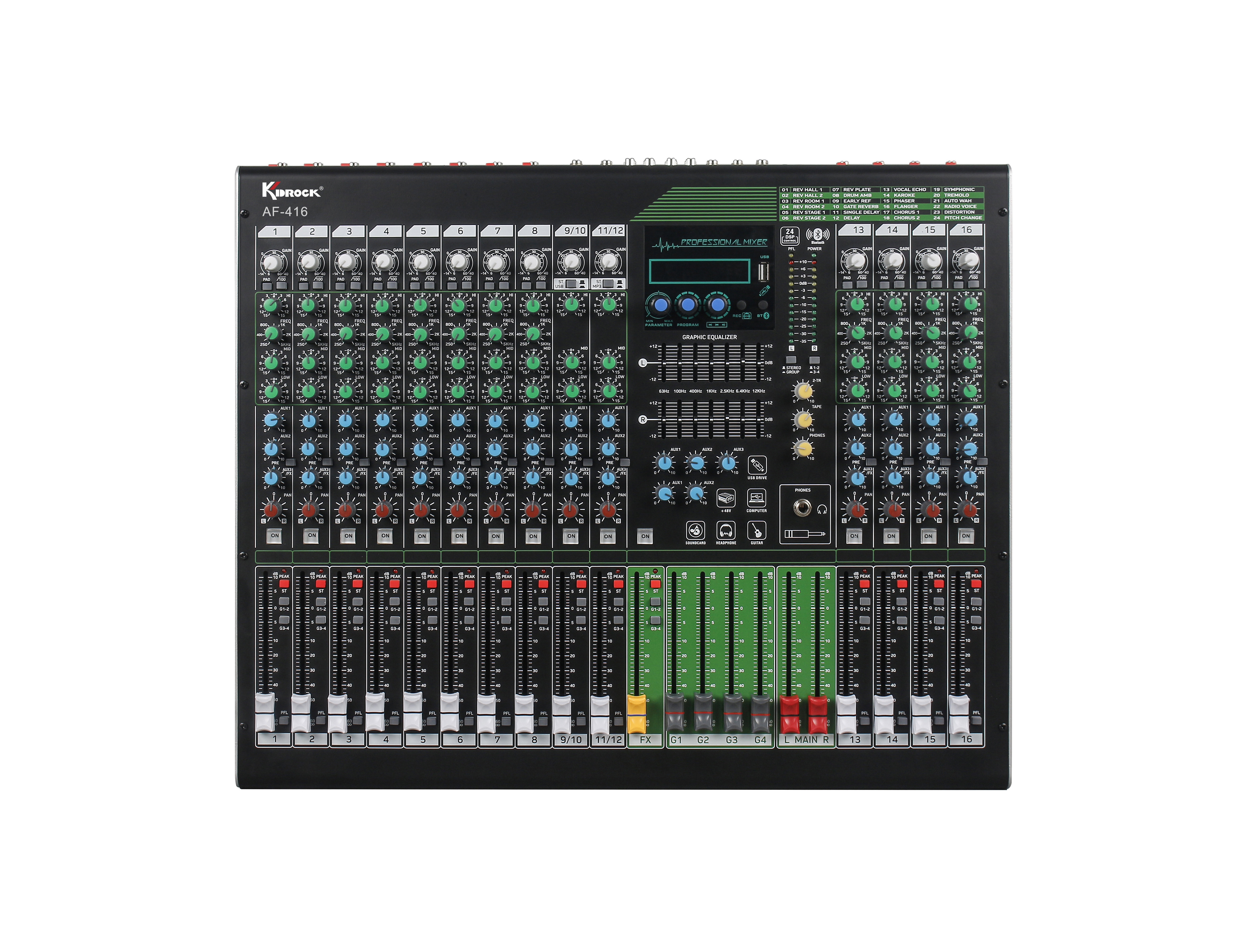

WAF-416 mixer
16-channel mixing console
1. 16 channel design, 12 MICMono+2 Stereo Input, single channel 100Hz low-frequency attenuation switch (high pass filtering).
2. Equalize 3 parameters per channel, Mono with frequency sweep.
3. Four sets of output, 2 sets of faders with forward reversal, 1 set of attenuated Aux, 1 set of attenuated effect, and 3 sets of AUXbusAuxOutput (including EFF).
4. Built in 24 DSP digital effects, built-in USB player, MP3 player, USB direct insertion recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transfers the sound played by the computer to the mixing console.
5. Built in 48V Fantasy Power supply, each channel with independent switch, main output dual 7-segment Stereo diagram equalizer, USB can switch with one channel Stereo, USB can be independently adjusted, MP3 can switch with one channel Stereo, MP3 can be independently adjusted.
6. Each input channel is equipped with an ON switch, a PEL headphone switch, a 12 segment accurate three color LED level light to display signal status, and a smooth high-quality 100MM travel pusher.
7 DimensionL×W×H：545*460*165（mm）
8 Net WeightWeight：9.1KG
Technical parameters:
1 Input Sensitivity： micmicrophone：-60dB
2. Stereo channel input: -40dB
3 Effect Send Echo send：-20dB
4 Effect return Echo back：-20dB
5 Output Output：Max 4V
6 Noise RatioS/N：83dB
7. Equalization: ± 15dB
8. High frequency: ± 15dB/10KHz
9. Mid frequency: ± 15dB/250KHZ~6KHZ
10. Low frequency: ± 15dB/60HZ
11. Max output level: 20dBm
12. THD degree: 002% @ 0dB1KHz
13. Frequency response: 20Hz~20Kz
14 PowerOutput Power：30w
15. Power voltage: 100V-240V/50Hz

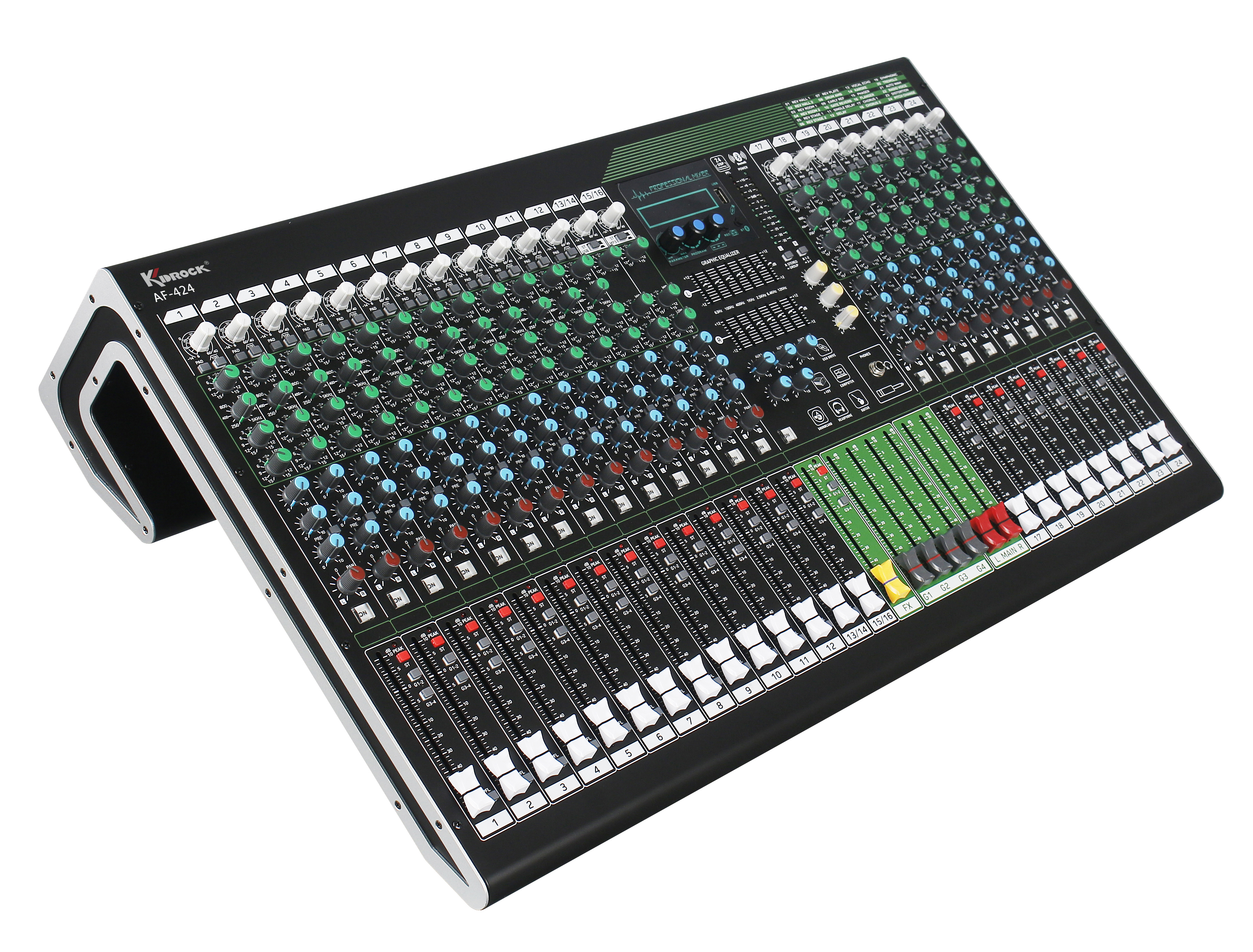

WAF-424 mixer
24-channel mixing console
1. 24 channel design, 20 MICMono+2 Stereo Input, single channel 100Hz low-frequency attenuation switch (high pass filtering).
2. Equalize 3 parameters per channel, Mono with frequency sweep.
3 AuxGroupOutput ， 2 sets of faders with forward reversal, 1 set of attenuated Aux, 1 set of attenuated effect, 3 sets of AUXbusAuxOutput (including EFF).
4. Built in 24 DSP digital effects, built-in USB player, MP3 player, USB direct insertion recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transfers the sound played by the computer to the mixing console.
5. Built in 48V Fantasy Power supply, each channel with independent switch, main output dual 7-segment Stereo diagram equalizer, USB can switch with one channel Stereo, USB can be independently adjusted, MP3 can switch with one channel Stereo, MP3 can be independently adjusted.
6. Each input channel is equipped with an ON switch, a PEL headphone switch, a 12 segment accurate three color LED level light to display signal status, and a smooth high-quality 100MM travel pusher.
7. Dimension L × W × H: 755 * 460 * 165 (mm)
8 Net WeightWeight：12.3KG
Technical parameters:
1 Input Sensitivity： micmicrophone：-60dB
2. Stereo channel input: -40dB
3 Effect Send Echo send：-20dB
4 Effect return Echo back：-20dB
5 Output Output：Max 4V
6 Noise RatioS/N：83dB
7. Equalization: ± 15dB
8. High frequency: ± 15dB/10KHz
9. Mid frequency: ± 15dB/250KHZ~6KHZ
10. Low frequency: ± 15dB/60HZ
11. Max output level: 20dBm
12. THD degree: 0, 02% @ 0dB1KHz
13. Frequency response: 20Hz~20Kz
14 PowerOutput Power：30w
15. Power voltage: 100V-240V/50Hz
