WDM Digital Mixer
KIDROCK
SFAAMPKD0002
Product Description

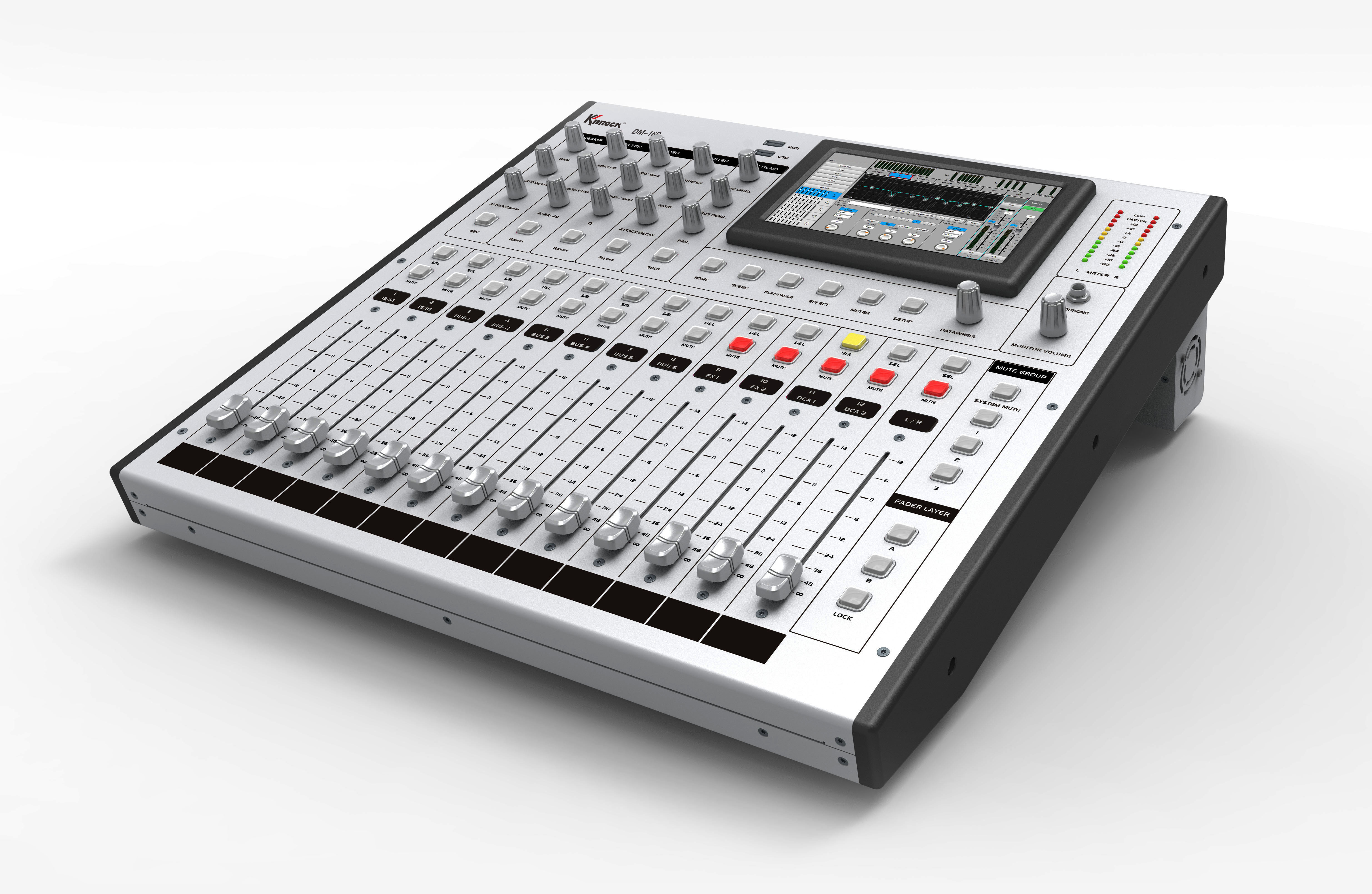

WDM16P digital mixer
Display screen dimension: 7
Resolution: 1024x600
Touch: Resistance
Resolution: 1024x600
Main control CPU: Samsung 4418 4-core Cortex ™- A9
Startup speed: 22 seconds
Operating System: Linux
DSP:ADSP-21489 400Mhz
analog Input :16CH ( 14MIC + 2Line )
digital input :S/P DIF 、optical fiber
digital Output :AES EBU
USB:recorder,player
Play format:APE、FLAC、MP3、WAV
analog Output :L/R+6BUS+2AUX+Headphone(L/R)
noise floor:-89dBu 无记权（AP 515测试）
Distortion:0.0045% @4dBu 20～20Khz
SNR:-108dB
dynamic range:108dB
Frequency Response:20Hz－20KHz ±0.5dB
Max Input Output level:18dBu （6.2Vrms）balance
DCA: have
Chinese English interface: Yes
Electric pusher: 13
IPad control: available
Effects: 2 types of effects
Feedback suppressors: 16 independent ones
Loudspeaker Manager: Yes
Ethernet: 100M
RS-232 protocol: available
WIFI: 150M (optional)
USB Mouse: Supports
Dimension:450x450x146mm
Net Weight:8kg
supply:AC 100v-240v ; 50/60Hz 55W

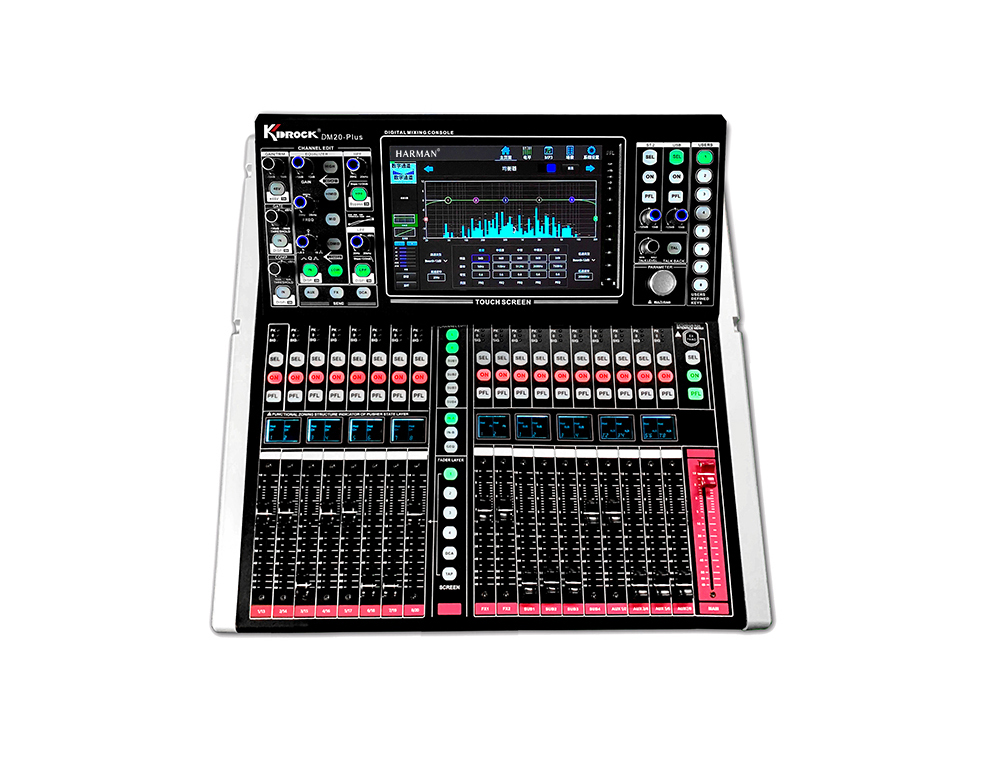

WDM26P digital mixer
Operating System:
Developed on Linux operating system, fearless of viruses, running more securely and stably
5-core CPU processor, 1.8G clock speed, fast startup, faster running speed
10.1-inch 1280 * 800 high-definition touch display, Chinese and English operation interface, free switching, easier to use
Automatically save shutdown parameters, no need to worry about data loss
Local Input/Output:
26 signal inputs (22 analog+4 digital)
(16 MIC/LineInput, 2 sets of 3.5 Lotus Stereo Input, 1 set of 3.5 Stereo headphone Input, 2 sets of Digital Input: sound card, MP3, AES Digital Input)
18 signal outputs
Main Output L, R,
8-channel AUX1-8
AuxOutput, 4-channel
SUB Group Output, 1-channel
Stereo headphone monitoring output,
AESOutput
Max supports 42 signal inputs and 26 signal outputs
Support Dante:
Optional 32x32 Dante version card for Dante signal input and output, supporting channel playback and recording
Product parameters
MICInput gain adjustment (smooth digital gain, involved in saving to the scene)
MicInput channel (Linked) parity joint debugging
+48Vphantom Power (MIC channels can be independently opened and closed, and can be saved to the scene)
MicInput channel independent PAD attenuation switch
Each input channel is equipped with a built-in voltage limiter, noise gate, phase, high-low pass filter, and 5-stage parameter equalization, Delay， Channel audio-visual balance adjustment
Quick copying function of channel parameters
Each channel is equipped with a multifunctional menu, mute and monitoring functions
All channels are equipped with 100MM electric push rods (19 ALPS electric push rods)
Input Output and Effect Channel Independent Physical Thruster Control
Each channel pusher supports user-defined layer functionality
Two push sub layer page flipping buttons (Input page flipping, Output and fixed effect push sub, more convenient and efficient operation)
8 customizable physical buttons
13.8 DCA Groups, 8 Mute Groups
14. Independent feedback suppressor management for each channel
Comes with a built-in signal generator (pink noise/sine wave/white noise), customizable to output from any one or multiple output channels
Comes with real-time spectrum RTA function (color editable)
Support dual machine synchronous data backup
Channel and scene editing support Chinese Input method
Integrated automatic mixing function
Supports Talkback microphone function
Support MIDI interface Input
AUXOutput (before/after thruster) can be set
Output channel processing: high-low pass filtering, 15 parameter equalization segments, main output 31 segments (GEQ supports manipulation on the pusher), compressor, Delay， phase
USB 8 * 8-channel playback recording function
Built in sound card (for direct playback and recording on mobile phones, iPads, MP3 players, PCs)
8 quick scene calling modes, 100 scene storage, customizable scene names, supports Chinese Input, seamless scene switching without sound interruption, supports USB import and export
4 independent DSP effectors are built-in locally, with multiple preset effect modes for users to use directly
FX foot switch interface
12V Output interface, can be connected to external lighting equipment
One click factory reset capability
Support 232 central control
Multi operating system control software (IOS system, Android system, WINDOWS system)
Support wired network port adjustment (or external router wireless adjustment)
10.1-inch 1280 * 800 high-definition capacitive touch display screen

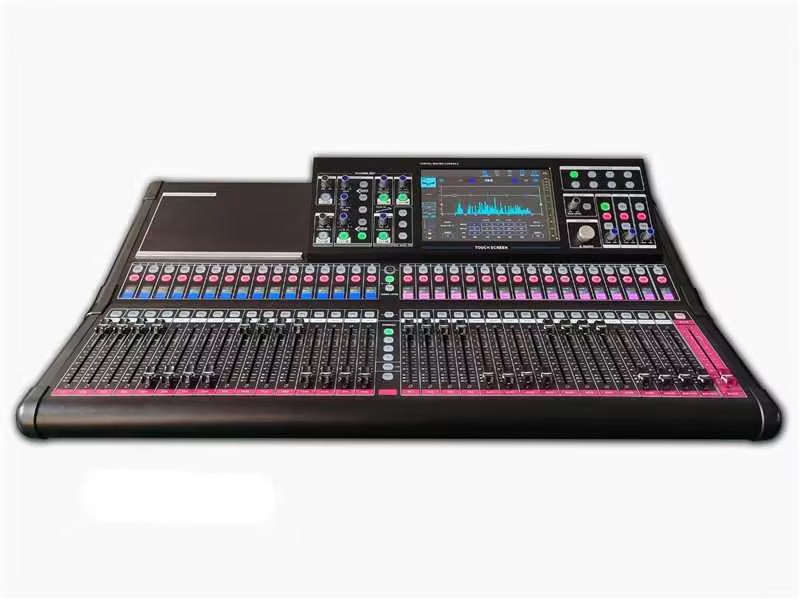

WDM32P digital mixer
Operating System:
Developed on Linux operating system, fearless of viruses, running more securely and stably
5-core CPU processor, 1.8G clock speed, fast startup, faster running speed
10.1-inch 1280 * 800 high-definition touch display, Chinese and English operation interface, free switching, easier to use
Automatically save shutdown parameters, no need to worry about data loss
Total Input Output:
Supports 58 signal inputs and 28 signal outputs
Product parameters
Local Input/Output:
42 signal inputs (38 analog+4 digital)
(32 MIC/LineInput, 2 sets of 3.5 Lotus Stereo Input, 1 set of 3.5 Stereo headphone Input, 2 sets of Digital Input: sound card, MP3, AES Digital Input)
20 signal outputs
(Main Output L, R, 4 SUBGroupOutput, 10 AUX1-10AuxOutput, 1 Stereo headphone monitoring output, AESOutput ）
Support connection to stage interface box
Support network audio expansion:
Optional 32x32 network audio board, realizing input and output of network audio signals, supporting multi track recording
Product parameters
1. MICInput gain adjustment (smooth digital gain, involved in saving to the scene)
2. MicInput channel (Linked) parity joint debugging
3.+48Vphantom Power (MIC channels can be independently opened and closed, participating in saving to the scene)
4. MicInput channel independent feedback suppressor effectively suppresses howling
5. Each input channel is equipped with a built-in voltage limiter, noise gate, phase, high-low pass filter, and 5-segment parameter equalization, Delay， Channel audio-visual balance adjustment
6. Quick copying function for channel parameters
7. Each channel is equipped with a multifunctional menu, mute and monitoring functions
8. Each channel is equipped with a 100MM stroke electric push rod (33 ALPS electric push rods)
9. Input Output and Effect Channel Independent Physical Thruster Control
10. Each channel pusher supports user-defined layer functionality
11. Two push sub layer page flipping buttons (Input page flipping, Output and fixed effect push sub, more convenient and efficient operation)
12.8 customizable physical buttons
13.8 DCA Groups, 8 Mute Groups
14. Comes with a signal generator (pink noise/sine wave/white noise) that can be customized to output from any one or more output channels
15. Comes with real-time spectrum RTA function (color editable)
16. Support dual machine synchronous data backup
17. Channel and scene editing support Chinese Input method
18. Integrated automatic mixing function
19. Support intercom microphone (Talkback) function
20. Support MIDI interface Input
21. AUX Output (pre/post thruster) can be set
22. Output channel processing: high-low pass filtering, 15 parameter equalization segments, main output 31 segments (GEQ supports manipulation on the pusher), compressor, Delay， phase
23. USB 32 * 32 multi track recording function
24. Built in sound card (for direct playback and recording on mobile phones, iPads, MP3 players, PCs)
25.8 quick scene calling modes, 100 scene storage, customizable scene names, supports Chinese Input, seamless scene switching without sound interruption, supports USB import and export
26. Four independent DSP effectors are built-in locally, with multiple preset effect modes for users to use directly
27. FX foot switch interface
28.12VOutput interface, can be connected to external lighting equipment
29. One click factory reset capability
30. Support 232 central control
31. Multi operating system control software (IOS system, Android system, WINDOWS system)
32. Support wired network port adjustment (or external router wireless adjustment)
33.10.1-inch 1280 * 800 high-definition capacitive touch display screen
