WMG-24 / WMG-32 MIXER CONSOLE

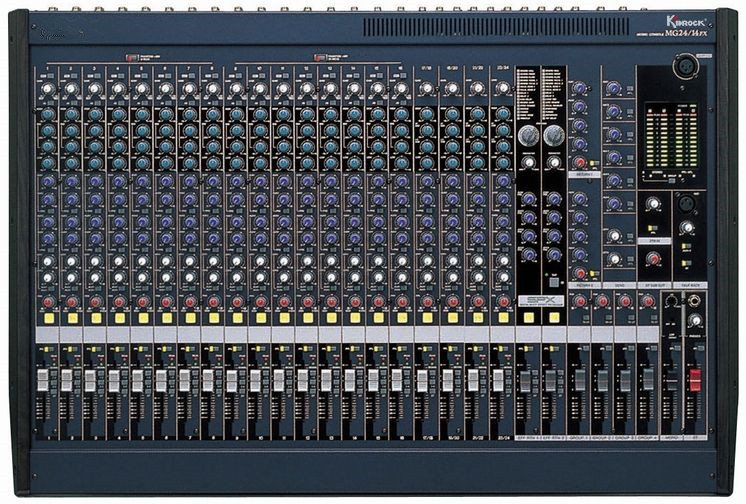

WMG-24 Mixer paramter
24 channel signal input (16MIC digital gain adjustment, 2 sets of Stereo, 1 set of return, sound card MP3 and fiber), built-in voltage limiter, noise gate, high-low pass, 4-segment parameter equalization, Delay， Sound and image balance adjustment,
12 signal outputs (8AUX Output, 2SUBOutput), 4 independent effectors,
17 100MM electric thrusters, built-in sound card,
4 shortcut scene mode call keys,
foot switch interface,
fiber input/output,
multi track digital recording.
7-inch touch screen,
display switching between Chinese and English,
user-defined layer, supports wired network port adjustment (or wireless adjustment with external router)

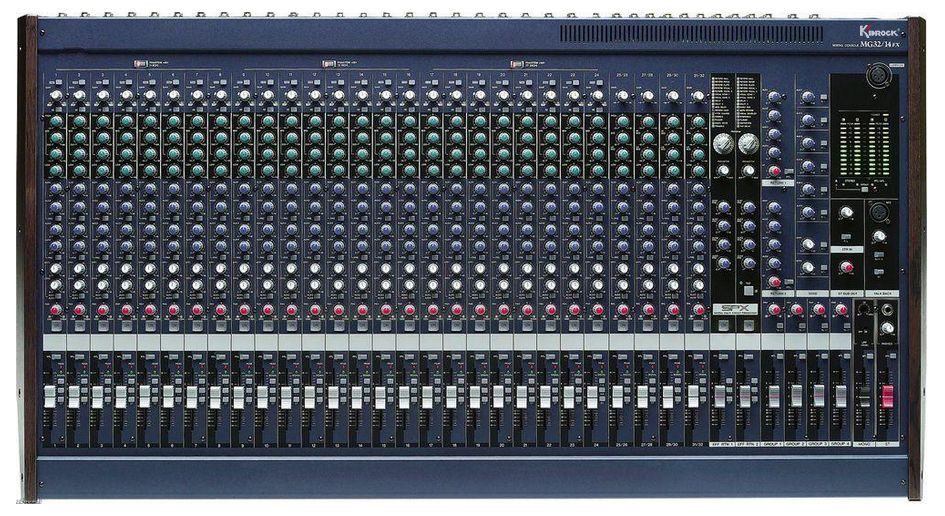

WMG-32 Mixer paramter
32 Input channels
24*mic+4*Stereo channels Input
14bus（Stereo 、4*Groups、6*AUX、2*effect）
Low noise, high-precision mic preamplifier.
Illusion power switch and plug-in input/output.
3 Center Segment Equalizer (Center Frequency Scan) and HPF
Dual SPX digital effects.
Scannable LPF for single channel output.
talk Input
Dimension L×W×H：1027×551×140（mm）
Net WeightWeight：20.8KG
