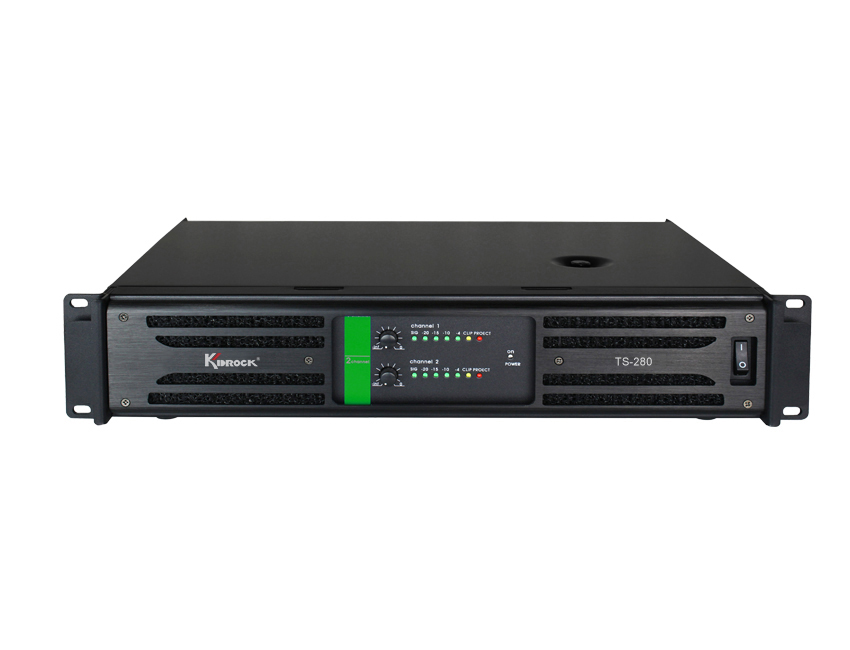

Analog amplifer
KIDROCK
SFAAMPKD0002
Product Description
| Model | WTS-240 | WTS-260 | WTS-280 | WTS-2100 | WTS-2120 | ||
| Frequency Response | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | ||
| Input impedance | 10KΩ-20KΩ | 10KΩ-20KΩ | 10KΩ-20KΩ | 10KΩ-20KΩ | 10KΩ-20KΩ | ||
| Input Sensitivity | 0.775V/1.4V | 0.775V/1.4V | 0.775V/1.4V | 0.775V/1.4V | 0.775V/1.4V | ||
| Damping ratio | ﹥200:1 | ﹥200:1 | ﹥200:1 | ﹥200:1 | ﹥400:1 | ||
| Noise Ratio | ﹥100dB | ﹥100dB | ﹥100dB | ﹥100dB | ﹥100dB | ||
| Cross talk | >70dB@1KHz | >70dB@1KHz | >70dB@1KHz | >70dB@1KHz | >70dB@1KHz | ||
| intermodulation distortion | ﹤0.35%/8Ω | ﹤0.35%/8Ω | ﹤0.35%/8Ω | ﹤0.35%/8Ω | ﹤0.35%/8Ω | ||
| THD | ＜0.5% | ＜0.5% | ＜0.5% | ＜0.5% | ＜0.1% | ||
| Continue Power | 8Ω | 400W×2 | 600W×2 | 800W×2 | 1000W×2 | 1200W×2 | |
| 4Ω | 700W×2 | 1000W×2 | 1400W×2 | 1800W×2 | 2000W×2 | ||
| Bridge | 8Ω | 1100W | 1800W | 2300W | 2800W | 3000W | |
| Power | AC220V 50-60Hz | AC220V 50-60Hz | AC220V 50-60Hz | AC220V 50-60Hz | AC220V 50-60Hz | ||
| Dimension(mm) | 483×88×360 | 483×88×360 | 483×88×360 | 483×88×360 | 483×88×360 | ||
| Net Weight | |||||||
