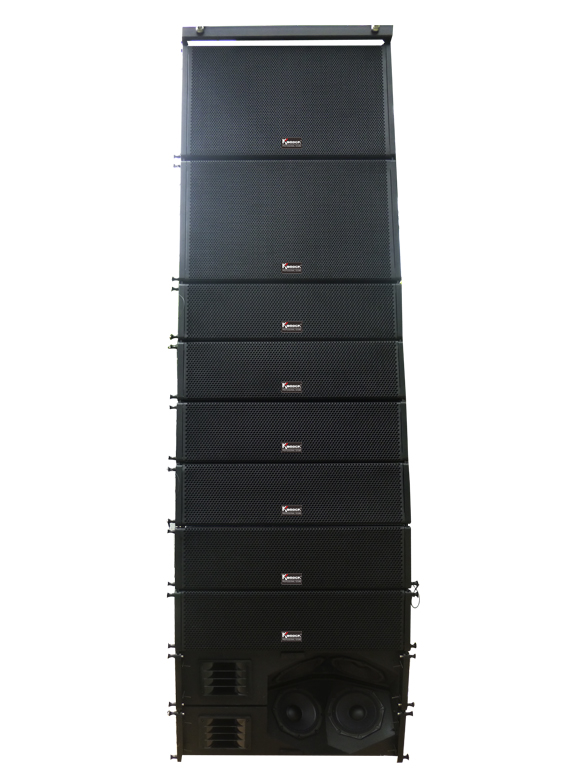

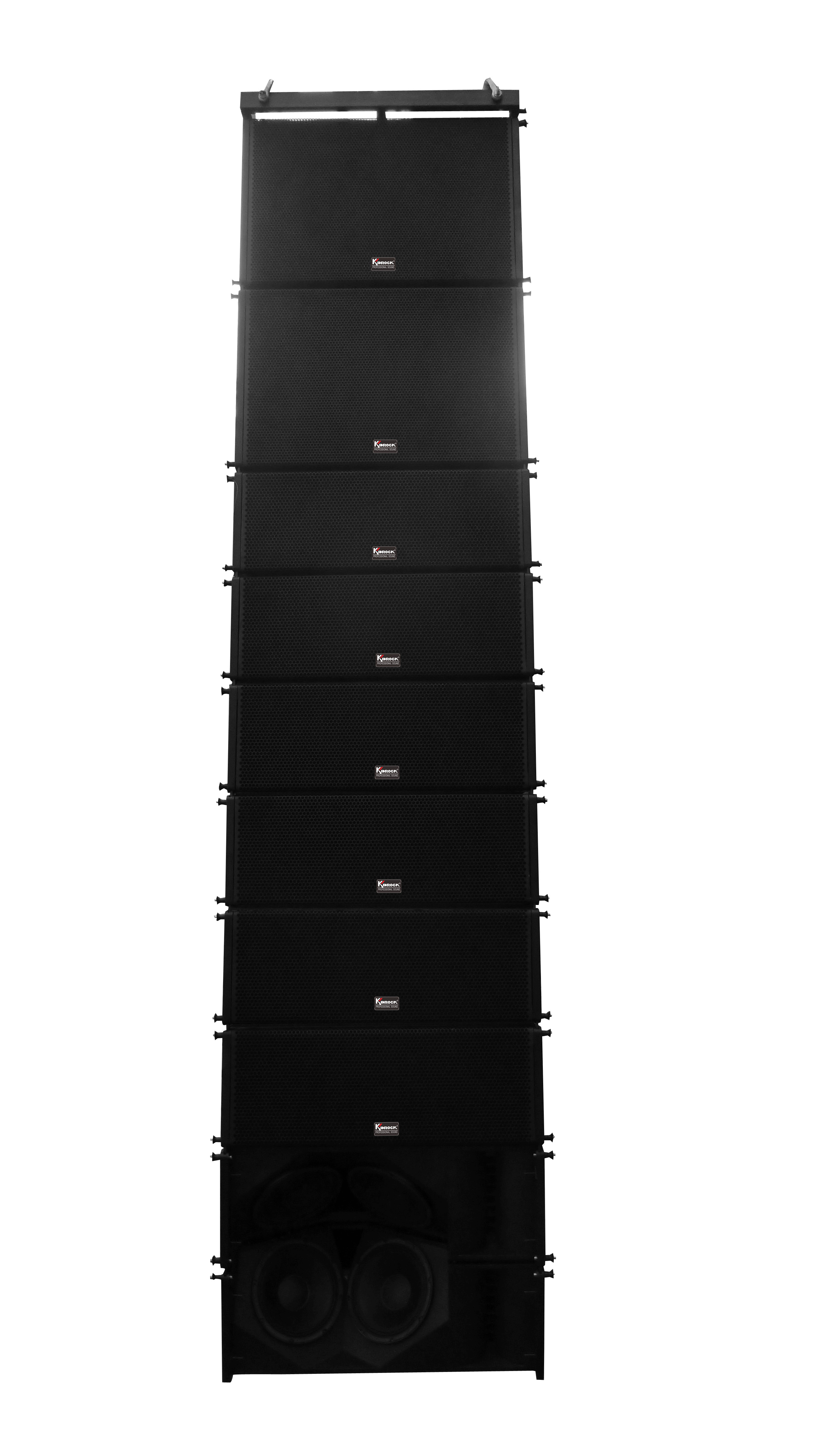

WVX series - fullranger loudspeaker

Availability:
Inquire Add to Basket

  • Loudspeaker

  • KIDROCK

  • SFASPKKD0076

Product Description

Product Description


ModelWVX-8210WVX-8212WVX-8272
Compose2X10LF"+1X3"Horn

2*12LF"+1*3"Horn

3″ titanium compression driver

Frequency Response

60Hz-20KHz（-10dB）

70Hz-19KHz（±3.5dB）

60Hz-20KHz（-10dB）

70Hz-19KHz（±3.5dB）

65Hz-19KHz（-10dB）

70Hz-18KHz（±3.5dB）

ImpedanceL:16Ω H:8Ω8Ω8Ω
Coverage Angle120°Hx10°V
120°H×10°V
100°H×4°V
Power/Peak power

L:550W H:120W

L:2200W H:480W

L:700W H:120W

L:2800W H:480W

400W/1600W

Input Sensitivity105dB/w/m 105dB/w/m 105dB/w/m
MAX SPL136dB136dB135dB
Dimension(HxWxD)（300X230）*840*420（300X230）*840*420(280×190)×836×436mm

NET Weight

GROSS WEIGHT


30.5KG

32.5KG

26.5KG

29.5KG


Previous:
Next:
WVX-8210 WVX-8212 WVX-8272
