WXT-260/WXT-360/WXT-480
KIDROCK
SFAAMPKD0002
Product Description

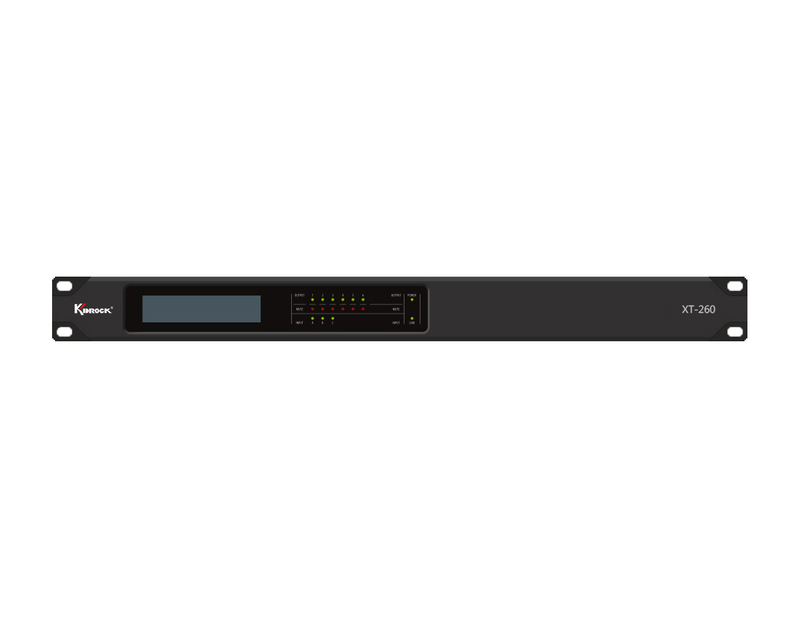

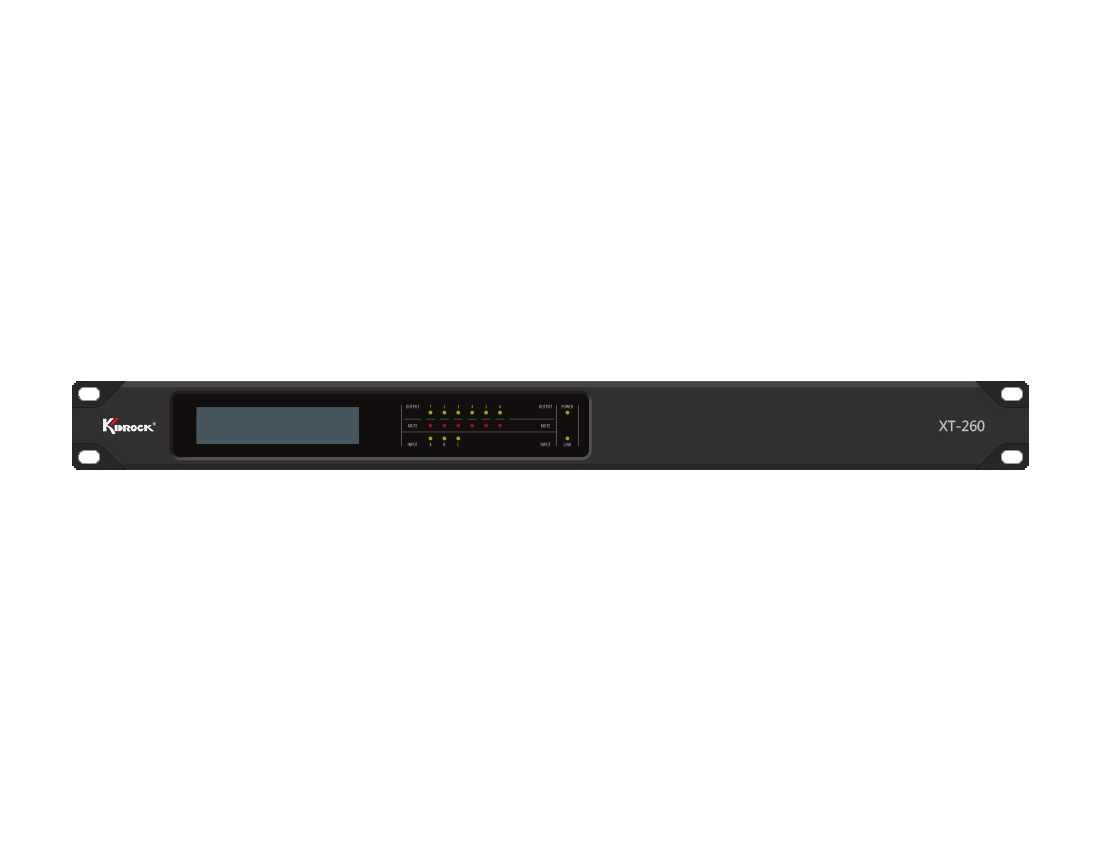

WXT-260 2 in 6 out audio processor
Using 32-bit fixed/floating point DSP, audio system delay<1ms, digital to analog conversion 24 bit, Input impedance 10k Ω, Max Input level 18dBu, Input channel Delay 0-1000ms per channel, filter HPF LPF、7PEQs。 Frequency Response: 20~20k Hz ± 0.3dB. THD＜0.003% THD+N @1kHz 。 Dynamic range of 120 dB. Background noise<-93dB, channel Crosstalk<-100dB @ 1kHz.
1. High performance professional audio processor using DSP technology
2. Frequency division EQ、 Pressure limit Delay、 Signal generator, matrix mixing and other functions
3. Input Output provides 7 segments of PEQ and high-low pass per channel
4. Input Output provides a delay setting of up to 1000ms per channel
5. Provide network ports, RS-485, RS-232, and GPIO ports to achieve comprehensive connection management functions
6 devices provide signal generators: sine, pink noise, white noise
7.Output impedance100Ω
8.13 scene presets, supporting scene information import and export.

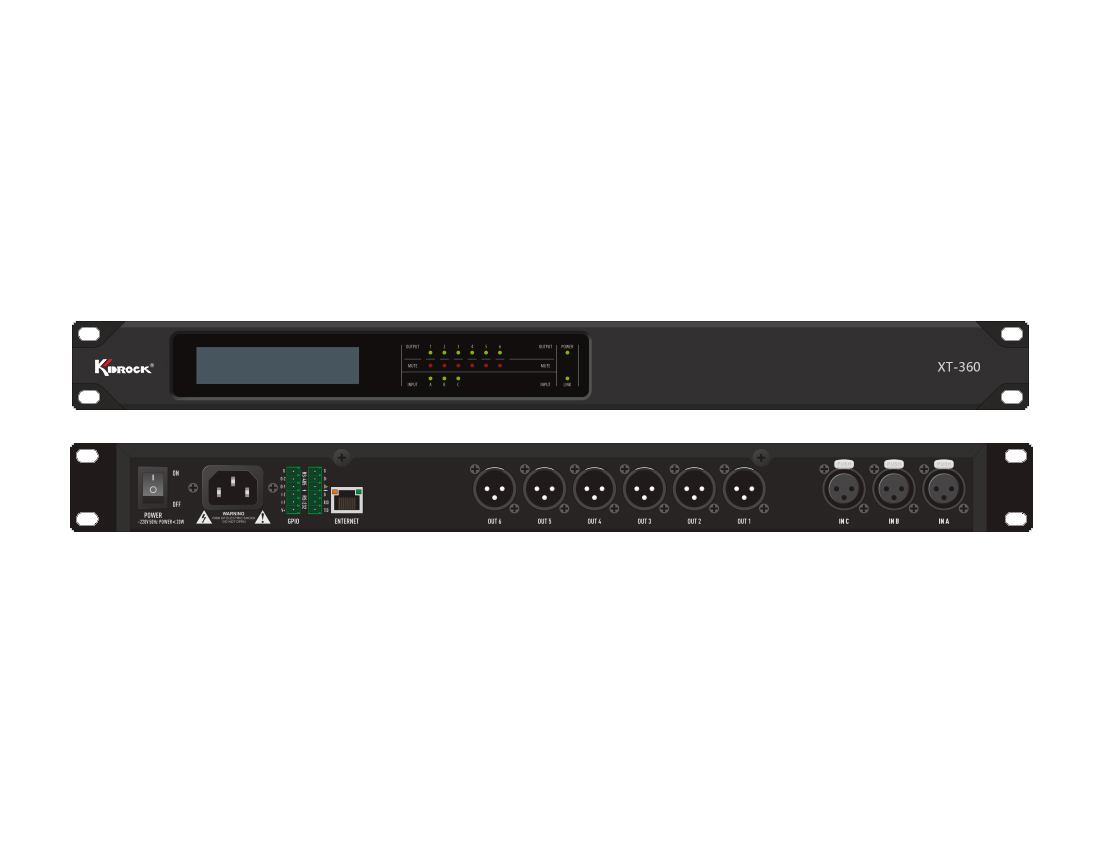

WXT-360 3 in 6 out audio processor
Using 32-bit fixed/floating point DSP, audio system delay<1ms, digital to analog conversion 24 bit, Input impedance 10k Ω, Max Input level 18dBu, Input channel Delay 0-1000ms per channel, filter HPF LPF、7PEQs。 Frequency Response: 20~20k Hz ± 0.3dB. THD＜0.003% THD+N @1kHz 。 Dynamic range of 120 dB. Background noise<-93dB, channel Crosstalk<-100dB @ 1kHz.
1. High performance professional audio processor using DSP technology
2. Frequency division EQ、 Pressure limit Delay、 Signal generator, matrix mixing and other functions
3. Input Output provides 7 segments of PEQ and high-low pass per channel
4. Input Output provides a delay setting of up to 1000ms per channel
5. Provide network ports, RS-485, RS-232, and GPIO ports to achieve comprehensive connection management functions
6 devices provide signal generators: sine, pink noise, white noise
7.Output impedance100Ω

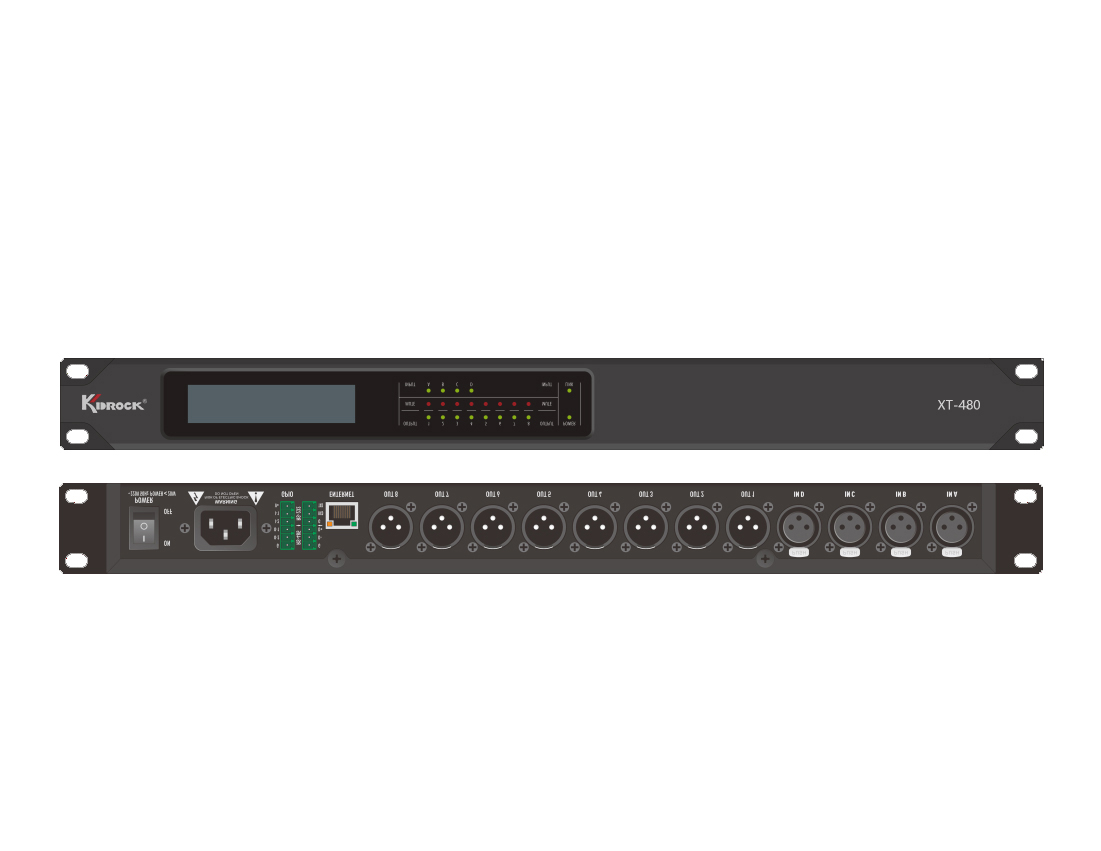

WXT-480 4 in 8 out audio processor
Using 32-bit fixed/floating point DSP, audio system delay<1ms, digital to analog conversion 24 bit, Input impedance 10k Ω, Max Input level 18dBu, Input channel Delay 0-1000ms per channel, filter HPF LPF、7PEQs。 Frequency Response: 20~20k Hz ± 0.3dB. THD＜0.003% THD+N @1kHz 。 Dynamic range of 120 dB. Background noise<-93dB, channel Crosstalk<-100dB @ 1kHz.
1. High performance professional audio processor using DSP technology
2. Frequency division EQ、 Pressure limit Delay、 Signal generator, matrix mixing and other functions
3. Input Output provides 7 segments of PEQ and high-low pass per channel
4. Input Output provides a delay setting of up to 1000ms per channel
5. Provide network ports, RS-485, RS-232, and GPIO ports to achieve comprehensive connection management functions
6 devices provide signal generators: sine, pink noise, white noise
7.Output impedance100Ω
WXT-880 8 in 8 out audio processor
1.8 analog inputs and 8 analog outputs
2. Support free switching between micInput and channels Input
3. Each Input comes with 48Vphantom Power, which is controlled by the upper computer software switch
4. Input level setting, noise gate Delay、 Voltage limiter, limiter
5. TCP/IP, USB drive free connection to upper computer software
6. RS-232, RS-485, GPIO interfaces provide comprehensive control functions
7. Each input has a feedback suppression function switch, with two levels of adjustment
8. AEC, automatic echo cancellation
9. ANC, automatic noise cancellation
10. Automatic mixing and matrix mixing functions
11. Input 31 segment PEQ adjustable, Output 10 segment PEQ adjustable
12. Automatic camera tracking function
13.Input impedance11.5KΩ，
14. Max Input level 12dBu/Line- 7dBu/Mic
15.phantom Power+48VDC, 6.5mA, per channel configuration,
16. Output impedance 150 Ω, Frequency Response curve 20Hz-20kHz (+-0.5dB)/Line, 20Hz-20kHz (+-1.5dB)/Mic,
17.THD+N：- 90dB (@ 12dBu, 1kHz, A-wt)/Line, -86dB (@ -7dBu, 1kHz, A-wt)/Mic.
18. Noise Ratio: 105dB (@ 12dBu, 1kHz, A-wt)/Line, 95dB (@ -7dBu, 1kHz, A-wt)/Mic
19. Power light, Link, +48V,Input Output audio signal。
20.Work temperature -20℃--80℃
